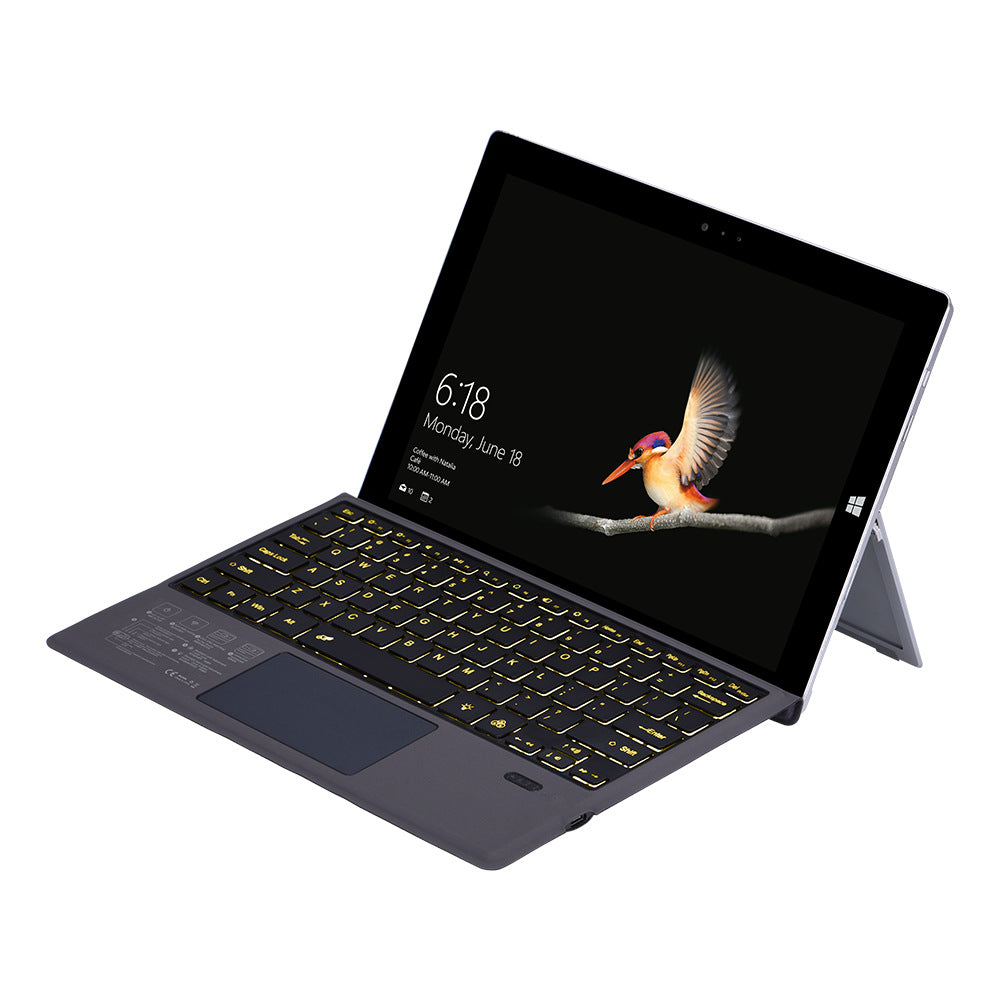

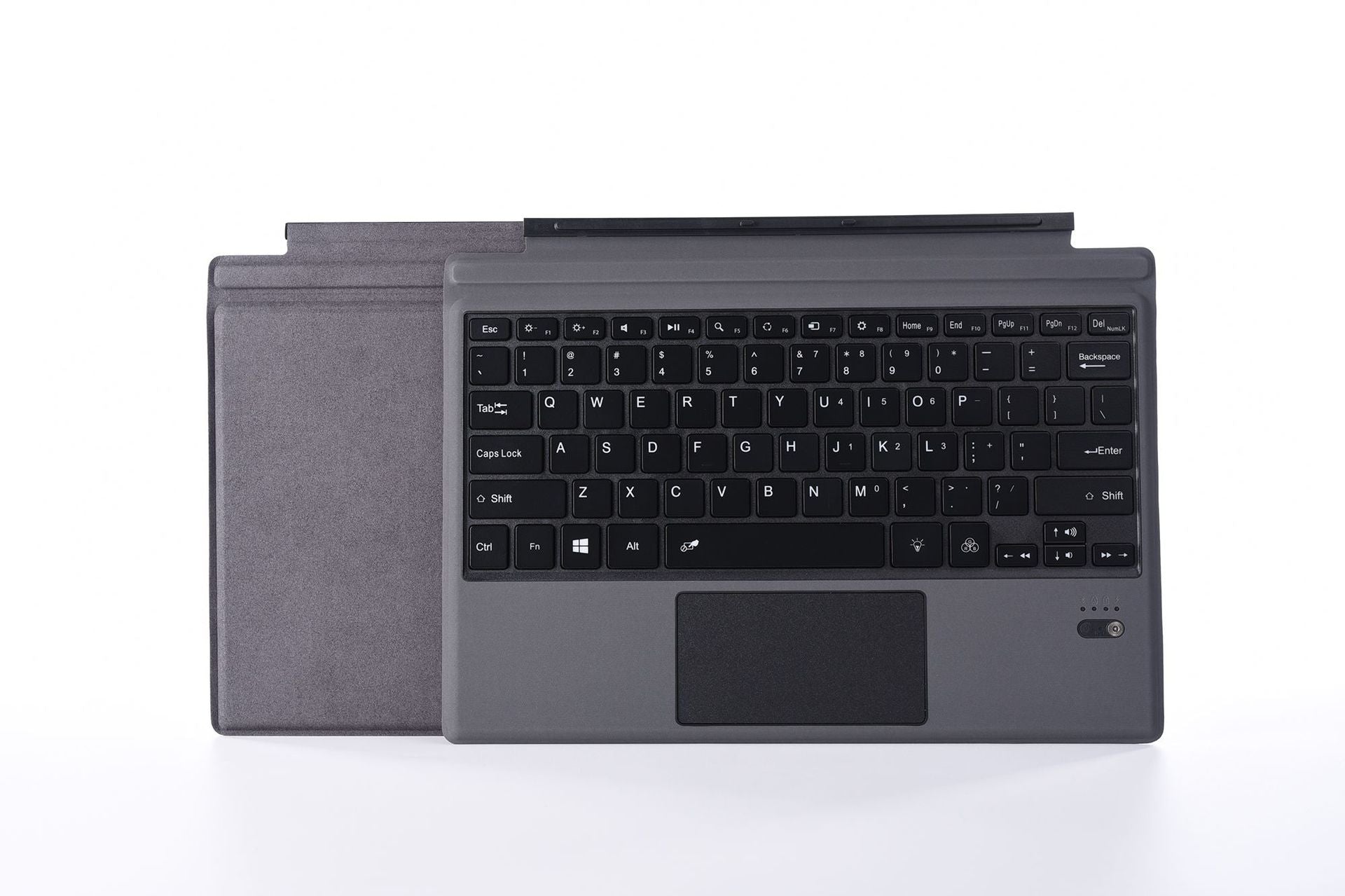

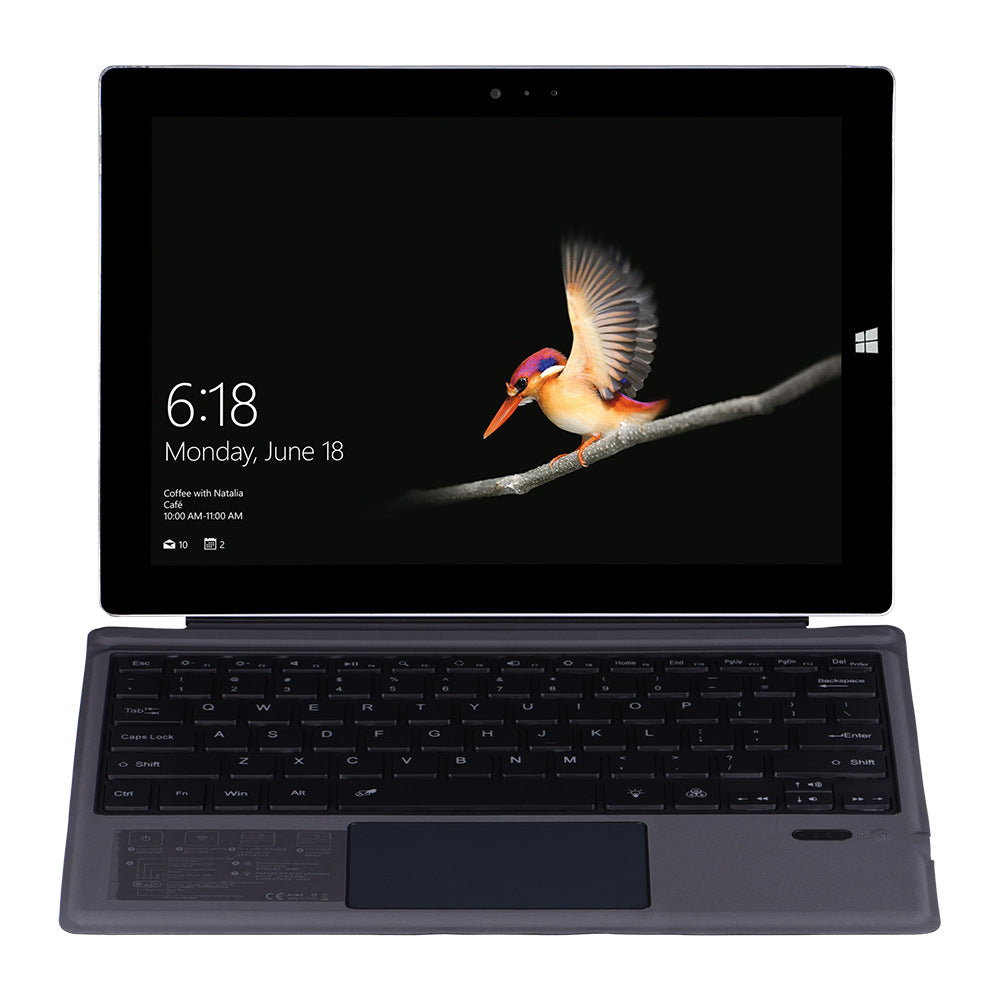

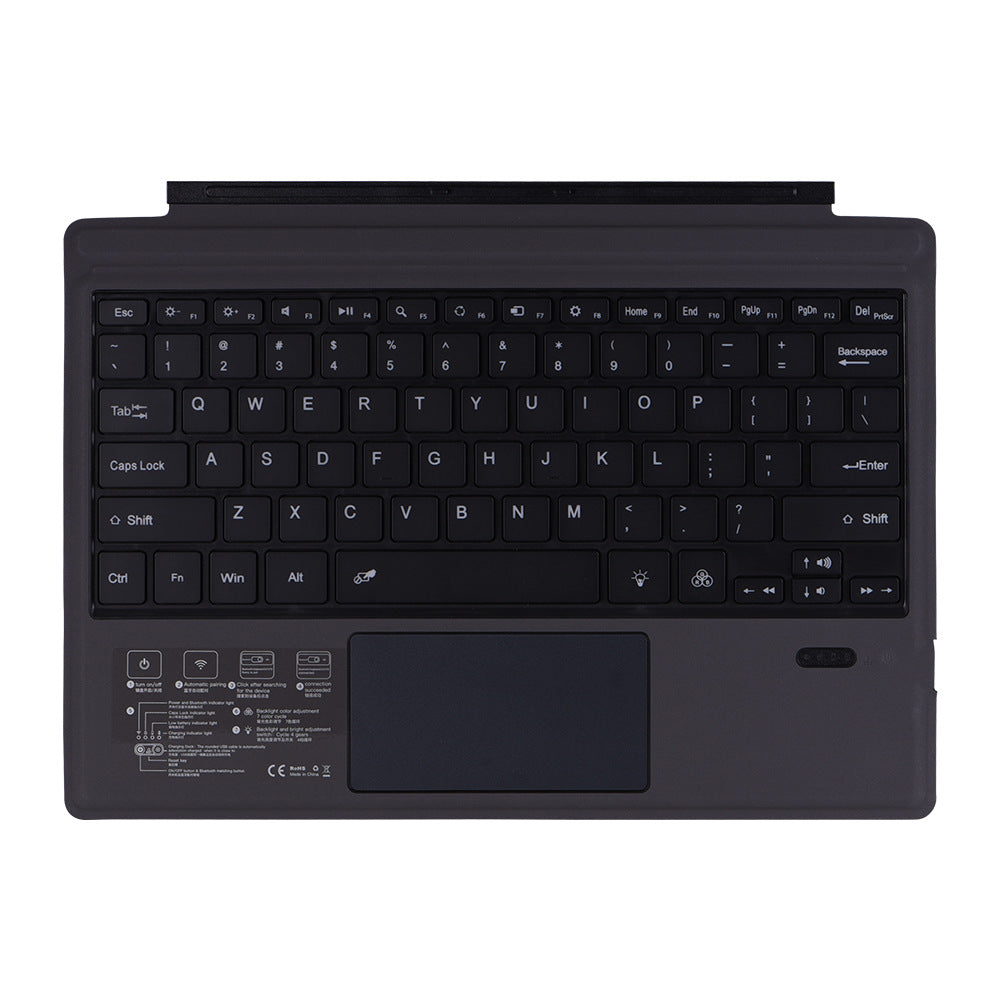

Applicable surface pro3/4/56/7Single Keyboard Mobile Phone Tablet Game Pro7+Bluetooth Keyboard Backlight

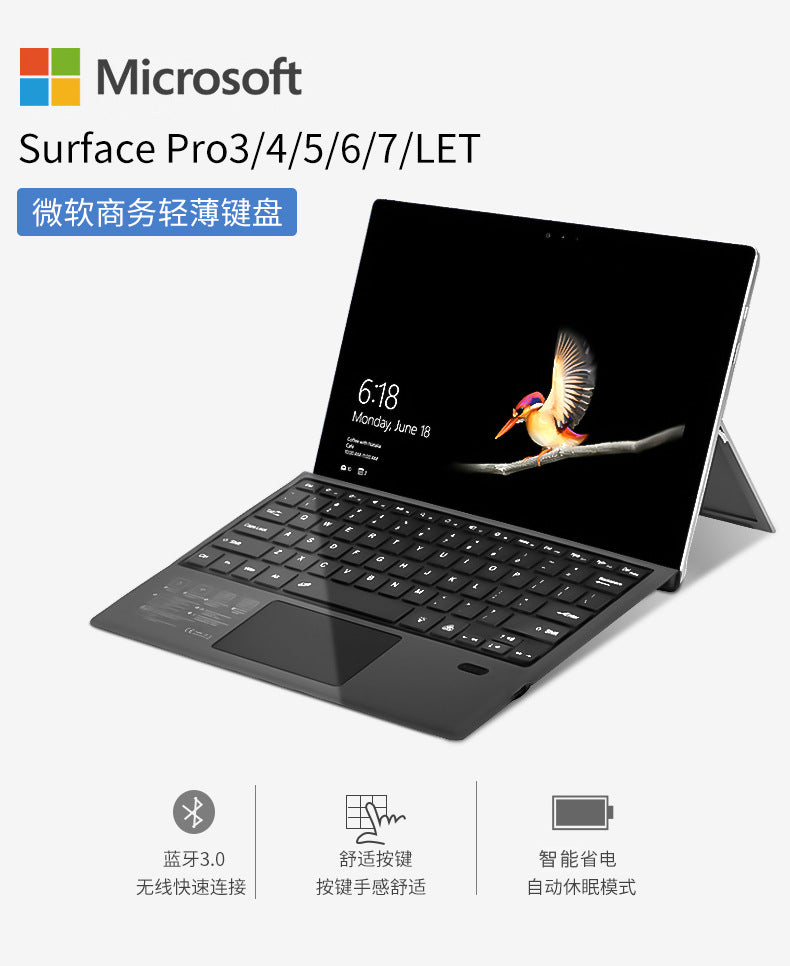

Compatible models: Microsoft12.2inch surface pro3/pro4/pro2017/pro6/pro7/7+

Product Size:29.5*22*0.5CM

Packing Size:34*24.1*1.6CM

Product weight: individual gross weight450g/ Net weight 280g

Packing Information:30 pieces per box, box size 56*35.5*26.5CM

Product Model Specifications:

1. Bluetooth 3.0 Standard Interface

2. Effective operating distance: 10m

3. Modulation method: GFSK

4.Working Voltage: 3.0-4.2V

5.Working current: less than 2.5mA

6.Standby Current: Less than 0.3mA

7. Sleep current: less than 40uA

8.Charging current: greater than 200mA

9. Standby time: more than 100 days

10. Charging time: 2-3 hours

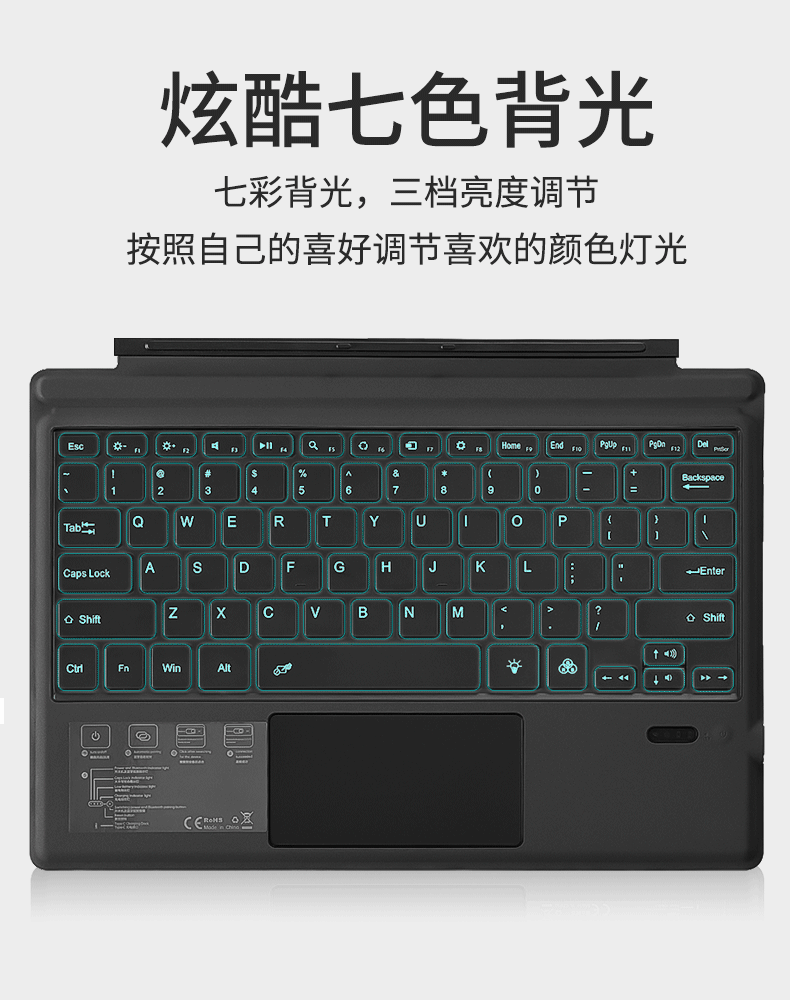

11. Lithium battery capacity: 350mAh/ 550mAh (backlit model)

12.Sustainable working hours: 35-100 hours

13.Lithium battery life: 3 years

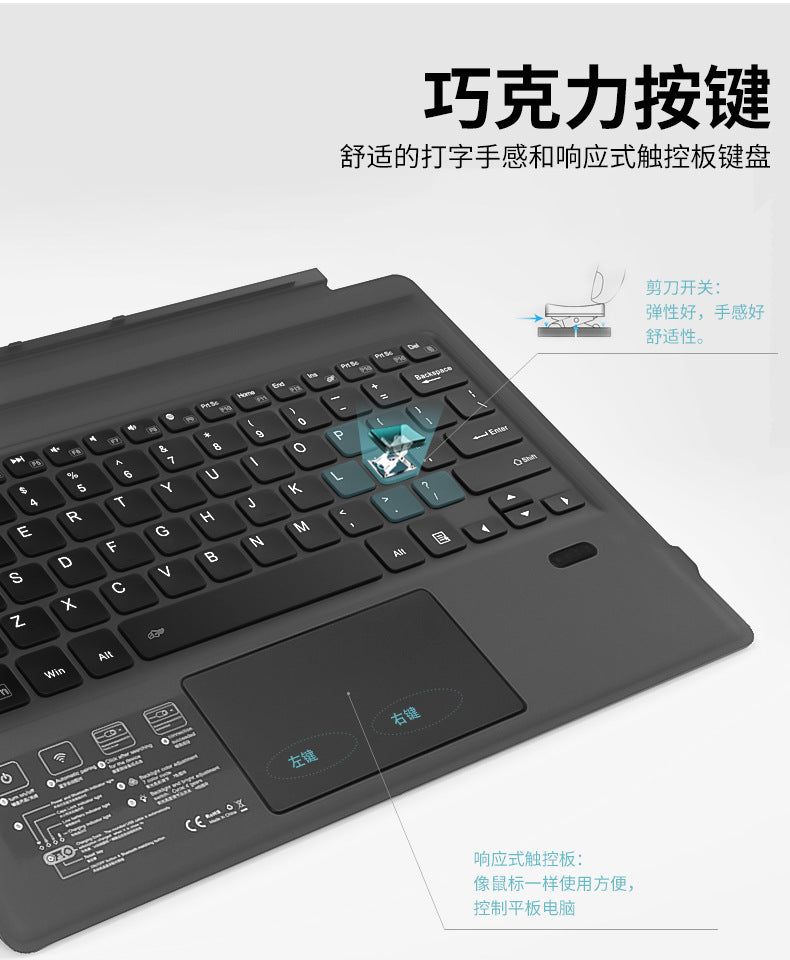

14. Button force: 80 ±10g

15. Button lifespan: 5.0million clicks

16. Working temperature: -10 -﹢55°

【Bluetooth Connection Steps】

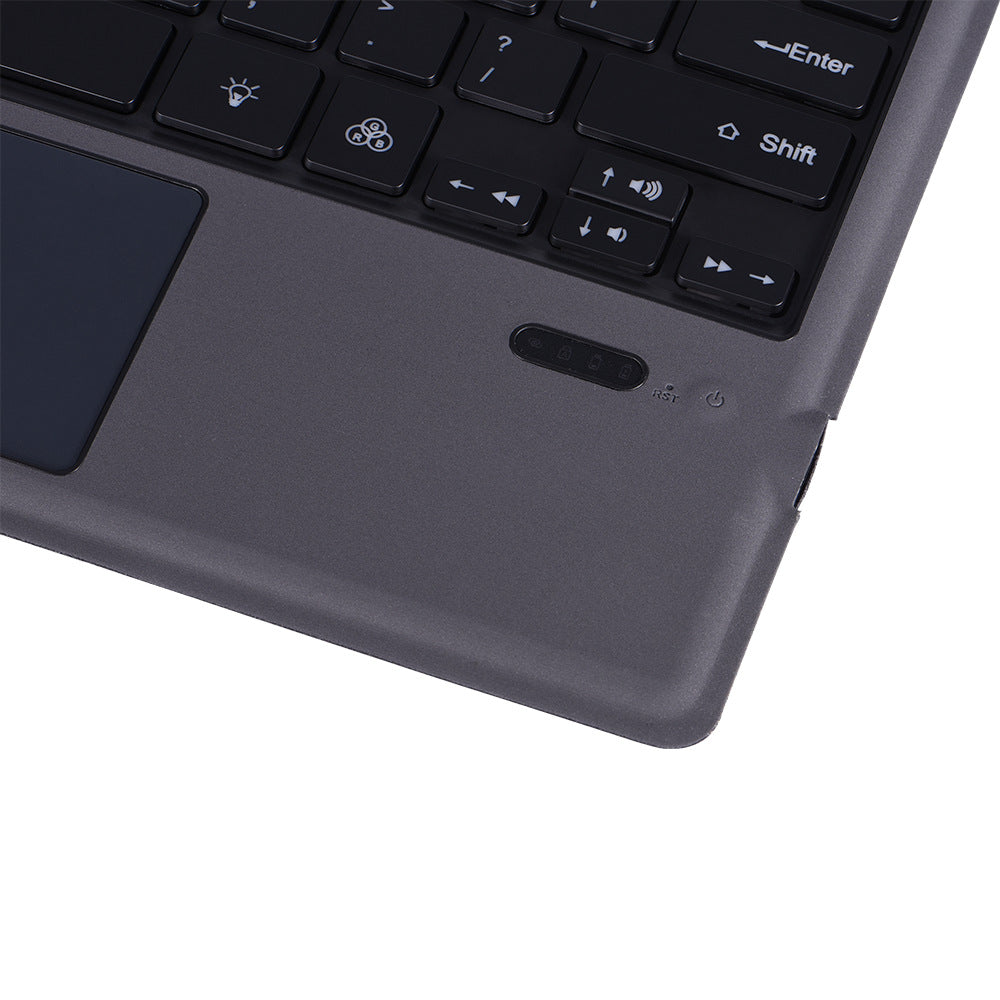

1Press and hold the power button on the bottom right corner3Seconds, the keyboard indicator light flashes once and then turns off indicating power on (note: the indicator light flashes quickly)3Below is the shutdown)

 2, then pressFN+ZSearch for Bluetooth; at this time, the blue light turns on and off intermittently.(Note: Do not connect to Bluetooth while charging; it's difficult to connect to Bluetooth during charging)

 3, open the tablet, find--Settings--Turn on wireless and network--Add Device-Turn off the tablet's Bluetooth and then turn it back on--Search for nearby devices-Search for Bluetooth names with a keyboard iconBlue/tooth keyboardClick to connect.

4, Tablet Screen Prompt [Bluetooth Pairing Request Click "Blue/tooth keyboard”)】, you can complete the Bluetooth connection
